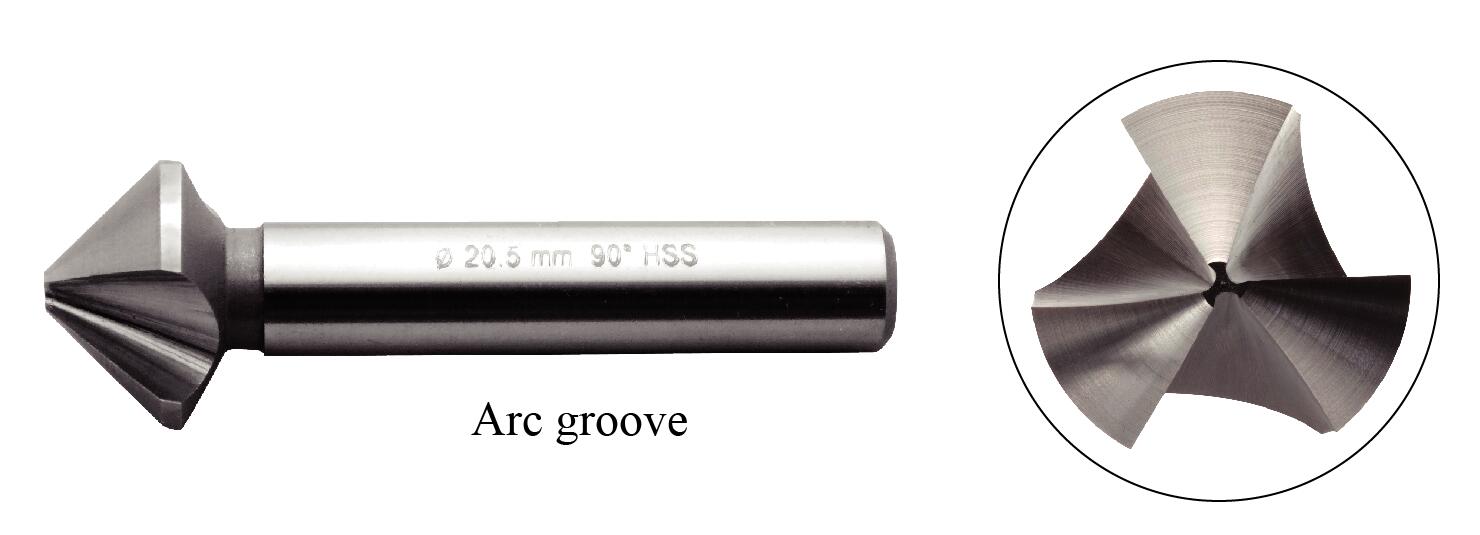

90°C型锪钻
|
Order
No. standard |
Order
No. arc groove |
Max Dia. |
Min Dia. |
Oal. |
Shk Dia. |
| 13600043 | 13601043 | 4.3 | 1.3 | 40 | 4 |
| 13600048 | 13601048 | 4.8 | 1.5 | 40 | 4 |
| 13600050 | 13601050 | 5 | 1.5 | 40 | 4 |
| 13600053 | 13601053 | 5.3 | 1.5 | 40 | 4 |
| 13600058 | 13601058 | 5.8 | 1.5 | 45 | 5 |
| 13600060 | 13601060 | 6 | 1.5 | 45 | 5 |
| 13600063 | 13601063 | 6.3 | 1.5 | 45 | 5 |
| 13600070 | 13601070 | 7 | 1.8 | 50 | 6 |
| 13600073 | 13601073 | 7.3 | 1.8 | 50 | 6 |
| 13600080 | 13601080 | 8 | 2 | 50 | 6 |
| 13600083 | 13601083 | 8.3 | 2 | 50 | 6 |
| 13600094 | 13601094 | 9.4 | 2.2 | 50 | 6 |
| 13600100 | 13601100 | 10 | 2.5 | 50 | 6 |
| 13600104 | 13601104 | 10.4 | 2.5 | 50 | 6 |
| 13600115 | 13601115 | 11.5 | 2.8 | 56 | 8 |
| 13600124 | 13601124 | 12.4 | 2.8 | 56 | 8 |
| 13600134 | 13601134 | 13.4 | 2.9 | 56 | 8 |
| 13600150 | 13601150 | 15 | 3.2 | 60 | 10 |
| 13600165 | 13601165 | 16.5 | 3.2 | 60 | 8 |
| 13600190 | 13601190 | 19 | 3.5 | 63 | 10 |
| 13600205 | 13601205 | 20.5 | 3.5 | 63 | 10 |
| 13600230 | 13601230 | 23 | 3.8 | 67 | 10 |
| 13600250 | 13601250 | 25 | 3.8 | 67 | 10 |
| 13600260 | 13601260 | 26 | 3.9 | 71 | 12 |
| 13600280 | 13601280 | 28 | 4 | 71 | 12 |
| 13600300 | 13601300 | 30 | 4.1 | 71 | 12 |
| 13600310 | 13601310 | 31 | 4.2 | 71 | 12 |
| 13600370 | 13601370 | 37 | 4.8 | 90 | 12 |
| 13600400 | 13601400 | 40 | 10 | 80 | 15 |
