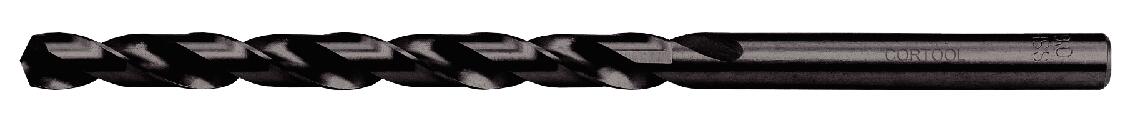

DIN340 HSS straight shank long series twist drill

Order No Dia L1 L2
roll forged
Oal Flute
10700020 2 85 56
10700025 2.5 95 62
10700030 3 100 66
10700032 3.2 106 69
10700035 3.5 112 73
10700040 4 119 78
10700045 4.5 126 82
10700048 4.8 132 87
10700050 5 132 87
10700055 5.5 139 91
10700066 6 139 91
10700065 6.5 148 97
10700070 7 156 102
10700075 7.5 156 102
10700080 8 165 109
10700085 8.5 165 109
10700090 9 175 115
10700095 9.5 175 115
10700100 10 184 121
10700105 10.5 184 121
10700110 11 195 128
10700115 11.5 195 128
10700120 12 205 134
10700125 12.5 205 134
10700130 13 205 134








Order No Dia L1 L2
fully ground
Oal Flute
10800020 2 85 56
10800025 2.5 95 62
10800030 3 100 66
10800032 3.2 106 69
10800035 3.5 112 73
10800040 4 119 78
10800045 4.5 126 82
10800048 4.8 132 87
10800050 5 132 87
10800055 5.5 139 91
10800066 6 139 91
10800065 6.5 148 97
10800070 7 156 102
10800075 7.5 156 102
10800080 8 165 109
10800085 8.5 165 109
10800090 9 175 115
10800095 9.5 175 115
10800100 10 184 121
10800105 10.5 184 121
10800110 11 195 128
10800115 11.5 195 128
10800120 12 205 134
10800125 12.5 205 134
10800130 13 205 134








Order No Dia L1 L2
TiN coated
Oal Flute
10900020 2 85 56
10900025 2.5 95 62
10900030 3 100 66
10900032 3.2 106 69
10900035 3.5 112 73
10900040 4 119 78
10900045 4.5 126 82
10900048 4.8 132 87
10900050 5 132 87
10900055 5.5 139 91
10900066 6 139 91
10900065 6.5 148 97
10900070 7 156 102
10900075 7.5 156 102
10900080 8 165 109
10900085 8.5 165 109
10900090 9 175 115
10900095 9.5 175 115
10900100 10 184 121
10900105 10.5 184 121
10900110 11 195 128
10900115 11.5 195 128
10900120 12 205 134
10900125 12.5 205 134
10900130 13 205 134








Order No Dia L1 L2
Co M35
Oal Flute
11100020 2 85 56
11100025 2.5 95 62
11100030 3 100 66
11100032 3.2 106 69
11100035 3.5 112 73
11100040 4 119 78
11100045 4.5 126 82
11100048 4.8 132 87
11100050 5 132 87
11100055 5.5 139 91
11100066 6 139 91
11100065 6.5 148 97
11100070 7 156 102
11100075 7.5 156 102
11100080 8 165 109
11100085 8.5 165 109
11100090 9 175 115
11100095 9.5 175 115
11100100 10 184 121
11100105 10.5 184 121
11100110 11 195 128
11100115 11.5 195 128
11100120 12 205 134
11100125 12.5 205 134
11100130 13 205 134








Order No Dia L1 L2
Co M42
Oal Flute
11200020 2 85 56
11200025 2.5 95 62
11200030 3 100 66
11200032 3.2 106 69
11200035 3.5 112 73
11200040 4 119 78
11200045 4.5 126 82
11200048 4.8 132 87
11200050 5 132 87
11200055 5.5 139 91
11200066 6 139 91
11200065 6.5 148 97
11200070 7 156 102
11200075 7.5 156 102
11200080 8 165 109
11200085 8.5 165 109
11200090 9 175 115
11200095 9.5 175 115
11200100 10 184 121
11200105 10.5 184 121
11200110 11 195 128
11200115 11.5 195 128
11200120 12 205 134
11200125 12.5 205 134
11200130 13 205 134








Order No Dia L1 L2
solid carbide
Oal Flute
11300020 2 85 56
11300025 2.5 95 62
11300030 3 100 66
11300032 3.2 106 69
11300035 3.5 112 73
11300040 4 119 78
11300045 4.5 126 82
11300048 4.8 132 87
11300050 5 132 87
11300055 5.5 139 91
11300066 6 139 91
11300065 6.5 148 97
11300070 7 156 102
11300075 7.5 156 102
11300080 8 165 109
11300085 8.5 165 109
11300090 9 175 115
11300095 9.5 175 115
11300100 10 184 121
11300105 10.5 184 121
11300110 11 195 128
11300115 11.5 195 128
11300120 12 205 134
11300125 12.5 205 134
11300130 13 205 134
